Ambulance Veterinary Medical Supplies

Ambulance Veterinary Medical Supplies
Ambulance Veterinary Medical Supplies Ambulance Veterinary Medical Supplies Ambulance Veterinary Medical Supplies

Large Image :  Ambulance Veterinary Medical Supplies

Product Details:

Place of Origin: CHINA
Brand Name: DP
Certification: CE
Model Number: ZNB-XAII

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Packed in carton
Delivery Time: Negotiable
Payment Terms: T/T, Western Union, MoneyGram, Debit Card, Credit Card, Paypal
Supply Ability: 50,0000 sets per month
Detailed Product Description
Product Name: High Quality Portable Ambulance Infusion Pump Vet Veterinary Volumetric Infusion Pump Instrument Classification: Class II
Type: First-Aid Devices Pumping Mechanism: Curvilinear Peristaltic
IV Set: Compatible With IV Sets Of Any Standard Flow Rate: 0.1-1200 Ml/h (in 0.1 Ml/h Increments)
Accuracy: ±3% VTBI: 1-20000 Ml (in 0.1 Ml Increments)
High Light:

Ambulance Veterinary Medical Supplies

,

Volumetric Veterinary Medical Supplies

,

20000ml Infusion Pump



High Quality Portable Ambulance Infusion Pump Vet Veterinary Volumetric Infusion Pump



Product Description



This product is specially designed for animals. Suitable for ambulances and other emergency rescue situations, easy to operate, the body is small and portable and easy to carry, color display, easier to operate, clear data. The product has an alarm function, the green light red light at a glance. The product is very cost-effective.



Product Specification



Product Name High Quality Portable Ambulance Infusion Pump Vet Veterinary Volumetric Infusion Pump
Model
DP-XAII
Pumping Mechanism
Curvilinear peristaltic
IV Set
Compatible with IV sets of any standard
Flow Rate
0.1-1200 ml/h (in 0.1 ml/h increments)
Purge, Bolus
Purge when pump stops, bolus when pump starts,

rate at 500, 800, 1200 ml/h
Accuracy
±3%
VTBI
1-20000 ml (in 0.1 ml increments)
Infusion Mode
ml/h, drop/min, time-based, body weight, nutrition
KVO Rate
1-5 ml/h (in 0.1 ml/h increments)
Alarms

Occlusion, air-in-line, door open, end program, low battery, end battery

AC power off, motor malfunction, system malfunction, reminder alarm

Additional Features
Real-time infused volume, automatic power switching,
mute key, purge, bolus, system memory, history log
Occlusion Sensitivity
High, medium, low
Air-in-line Detection
Ultrasonic detector
History Log
50000 events
Wireless management
Optional
Drop Sensor
Optional
Vehicle Power (Ambulance)
12±1.2 V
Power Supply, AC
110/230 V (optional), 50-60 Hz, 20 VA
Battery
9.6±1.6 V, rechargeable
Battery Life
5 hours at 25 ml/h
Working Temperature
10-30℃
Relative Humidity
30-75%
Atmospheric Pressure
860-1060 hpa
Size
130*145*228 mm
Weight
2.5 kg
Safety Classification
Class Ⅰ, type CF



Product Feature



  • Real-time infused volume, automatic power switching,mute key, purge, bolus, system memory, history log
  • Ultra-long warranty: 2 years
  • Have alarms: Occlusion, air-in-line, door open, end program, low battery, end battery AC power off, motor malfunction, system malfunction, reminder alarm

Product Details

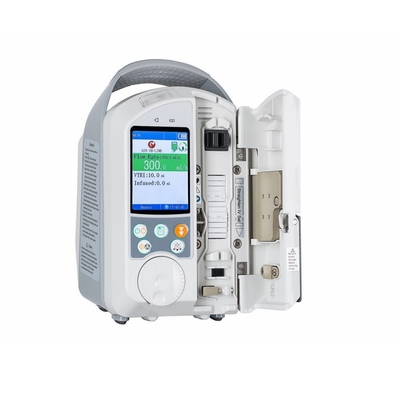

Ambulance Veterinary Medical Supplies 0

1) Pump handle: always use this handle to move the pump.
2) ALARM AND FLOW LED:
Flash in red when pump in alarm condition.
Alternate flash in green during infusion.
3) BATT and CHARGE LED: Flashing indicates battery under charging. On indicates pump powered by battery.
4) POWER STATUS LED: Indicate pump powered by alternate current.
5) LCD: Display information.
6) [PURGE] KEY: Remove air in the IV tubing.
7) [MENU] KEY: Press this key to enter main menu.
8) [ON/OFF] KEY: Keep pressing this key to turn on or turn off pump.
9) [SILENCE] KEY: Press this key to mute the alarm sound.
10) [START/STOP] KEY: start or stop infusion, also act as a mute key.
11) Shuttle KEY.
12) Up position slot.
13) Pump door.
14) Bubble sensor: Detect air bubble in the IV tubing.
15) Pump lamp: light on when the door is open.
16) Peristalsis fingers: Press the IV tubing to drive down the liquid.
17) Tension plate: Press the IV tubing to generate pressure.
18) Door lock lever: Door hook can hook onto it.
19) Pump hook: Pull up this hook and close the door, then push it to lock the door.
20) Tubing guide: Fix the IV set.
21) Door magnet.
22) Pressure sensor: Detect the occlusion of the IV set.
23) Pressure board.
24) Tubing clamp: Automatically clamp the IV tubing when the door is open.
25) Down position slot.

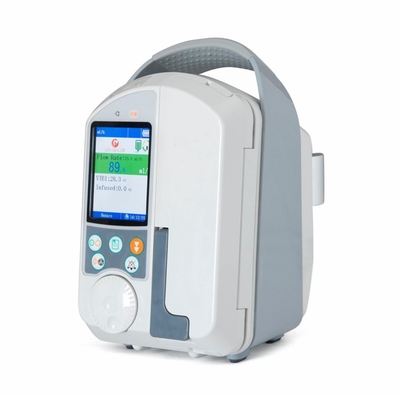

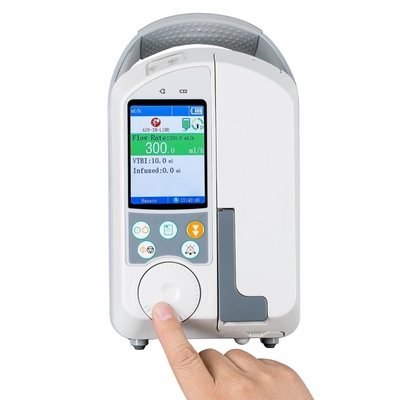

Product Picture



Ambulance Veterinary Medical Supplies 1Ambulance Veterinary Medical Supplies 2



FAQ



Q1: How long will it take to produce the product?

A: It will usually take 7-10 days for order less than 20,000 pcs; 14-21 days for 20,000 to 100,000 pcs; for order more than 100,000 pcs will take around 30-45 days depends on the customized requirements.



Q2: How should buyer pay to us?

A: We could accept T/T transfer, Credit Card, Debit Card, Western Union, Paypal and Money Gram. And we could accept 30% deposit before start to produce, and 70% balance before the product leave our factory for order more than 20,000 pcs, and we can accept factory and product inspection. We don't accept L/C payment method now.



Q3: What trade terms do we support?

A: Theoretically we can accept all the terms, but what we do most is FOB and CPT, for some country we could offer DDP, like the USA, UK, Australia, France and so on. If you want check whether your country on the list, please contact our customer service staff.



Q4: How long will it take to delivery the product?

A: That will depends on what shipping method you choose, usually sea shipping will take about 30-35 days to delivery to the port, but DDP sea shipping will take longer because they will need to delivery the product to your appointed address, usually it will take about 35-45 days, depends on the distance between the destination country and China. By air cargo will be much sooner, usually it will take 5-10 days to delivery to the appointed airport. Air Express will depends on the country delivery to, like European and North American countries, usually it will take 3-12 days. For Southern east countries, it will take about 2-9 days. For Africa and South American countries, it will take longer. Australia will need to see the local custom policy, usually it will take about 7-12 days.



Q5: What if I receive the product broken?

A: If you receive the product broken, please don't worry. We have three policy to protect your benefit.

1) If the damage rate is less than 5%, we will offer some discount in your next order as compensation.

2) If the damage rate is more than 5%, we could refund you equal value amount or give you the equal quantity product for free in you next order.

3) If you need the product urgently, we could resend the same quantity of the damaged product for free, and we share the shipping cost 50% each side with our customer.
