3CHZY0003 Portable Household Medical Oxygen-Concentrator 5L Oxygen Concentrator Machine
Product Description
This removable oxygen-concentrator is suitable for students, pregnant women, seniors and commuters. It has one-button operation, an easy-to-read LED display, and can perform low concentration alarms and high temperature alarm alarms.The machine comes with a cleaning reminder function, and the filter screen is cleaned regularly, which can effectively prevent the decrease of oxygen production efficiency caused by the blockage of the air inlet.
Product Specification
|
Product parameter
|
|
Model No.
|
NT-1
|
|
Scope of application
|
It's used for health preservation and improving the quality of life only, not for medical treatment or life continuation.
|
|
Oxygen production method
|
Pressure swing adsorption separation method (PSA); pulse generator
|
|
Net weight
|
2.95 kg
|
|
Max oxygen production flow(equivalent)
|
5L
|
|
Oxygen purity (1-5L)
|
90%±3%
|
|
Input voltage
|
DC 12v- 16.8 V; 100V- 240V
|
|
Standard battery pack capacity
|
92Wh 6.4 ah
|
|
Power
|
75W
|
|
Product Dimension
|
7.09''*4.92''*10.63''
|
|
Noise
|
≤54 dB
|
Common Feature
- Alarm light:The light is on when the device is operated abnormally, meanwhile will display the alarm code.
F0001-LOW Battery Warning; F002-NO Breath Detected; F0011--High Temperature with Alarm;
F0012-Oxygen Sensor Abnormal Alarm;
- Low Concentration:When the oxygen concentration is lower than 82%, the light is on.
When the oxygen concentration is lower than 50%,the light is on with alarm.
- Breath signal: When the respiratory signal of the user is detected ,the light is on.Meanwhile, the device will automatically pulse oxygen supply. Healthier, more efficient and environmentally friendly
- Power indicator: Indicates the current bult-in battery power
- Timing/Min: Display the device how many minutes the device are working.
- Accumulated hours: Display how long the device has been working (unit: hour)
- Grade: Adjust output oxygenflow
- Time: Setting device using time, adjustable from 0-240 minutes
- Level: Output oxygen flow gear
- Power Switch: Press and hold the button for 3 seconds to shut down

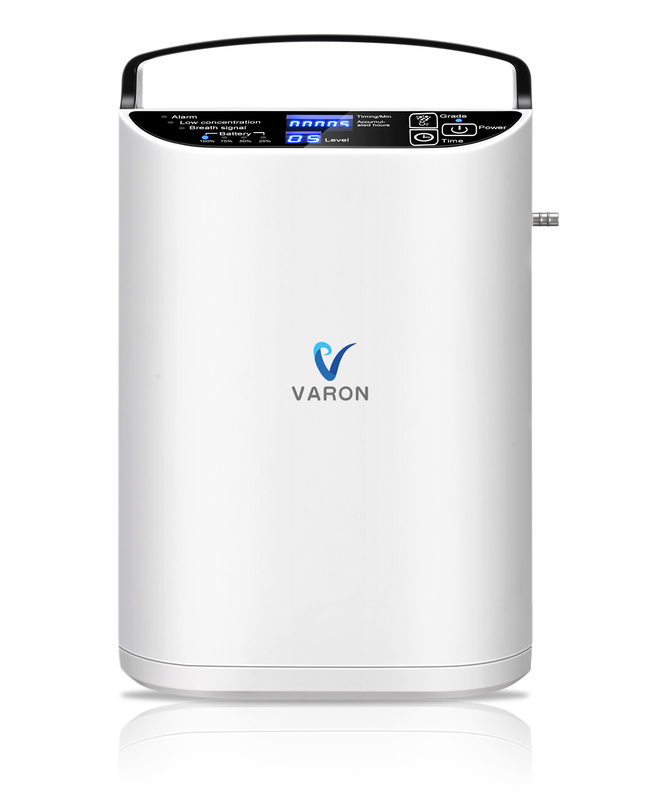

Product Picture
