7 Inch Portable Spirometry Machine Mouthpiece 16L/S Lung Function Test Device

7 Inch Portable Spirometry Machine Mouthpiece 16L/S Lung Function Test Device

  • 7 Inch Portable Spirometry Machine Mouthpiece 16L/S Lung Function Test Device
  • 7 Inch Portable Spirometry Machine Mouthpiece 16L/S Lung Function Test Device
  • 7 Inch Portable Spirometry Machine Mouthpiece 16L/S Lung Function Test Device
  • 7 Inch Portable Spirometry Machine Mouthpiece 16L/S Lung Function Test Device
7 Inch Portable Spirometry Machine Mouthpiece 16L/S Lung Function Test Device
Product Details:
Place of Origin: CHINA
Brand Name: OEM
Certification: CE
Model Number: HXH-DS-01
Payment & Shipping Terms:
Minimum Order Quantity: 10 Pcs
Price: Negotiable
Packaging Details: 170*110*65mm per box, 1 piece per box. 0.8 kg
Delivery Time: Negotiable
Payment Terms: T/T, Western Union, MoneyGram, Debit Card, Credit Card, Paypal
Supply Ability: 100,000 pcs per month
Contact Now
Detailed Product Description
Product Name: Lung Function Testing Device Material: Metal And Plastic
Volume Range: 0-10 L(FVC) Flow Range: 0-16 L/s
Input: Power Volume Accuracy: ±3% Or 0.05 L
Power Supply: 100V-240V; 50Hz/60Hz Storage: 10,000 Groups Of Data
High Light:

7 inch portable spirometry machine

,

Mouthpiece Portable spirometry machine

,

16L S lung function test device



Portable 7 Inches LCD Touch Screen Lung Function Testing Device Mouthpiece Pipe Digital Spirometer With Terminal Printer



Product Description



Spirometer is a portable lung function testing device, which mainly used to examine lung function related parameters for patients.
It can be applied to various environments such as in hospitals, clinics, etc. And it is also suitable for communities, schools,factories and other places to conduct health examination occupational disease screenings.



Product Specification



Product Name Mouthpiece Pipe Digital Spirometer
Power Source Electricity
Material Acrylic, metal
Volume Range 0-10 L(FVC)
Volume Accuracy ±3% or ±0.05L
Certificate CE





Common Feature







1) Measurement of Forced Vital Capacity (FVC), Vital Capacity (VC/SVC), maximum voluntary ventilation (MVV) and relevant functions, more than 50 parameters can be measured and displayed; for several times of measurement, the optimal result will be displayed; the condition of subject can be shown by the ratio of the measured value and the predicted value.

2) Measurement parameters: Forced Vital Capacity (FVC): FVC,FEV1,PEF,FEV1 (FEV1/FVC),FEF25,FEF50,FEF75, FEF2575, FEV1/VC, FEV6, FEV1/FEV6, ELA, FET, EVOL, FIVC, FIV1, FIV1/FIVC, PIF, MVV,etc. Vital Capacity (VC/SVC): VC,IC,ERV,IRV,EVC,IVC,TV,VE,RR,tI,tI/tE,tE,TV/tI,tI/ttot Maximum Ventilatory Volume (MVV): MVV

3) Real-time display respiration waveform:Flow-Volume loop and Volume-Time curve chart;

4) 7" color LCD touch screen, buttons can be operated along with touch screen;

5) Incentive animation operation guide, easy for the use between children and the old;

6) Built-in thermal printer, reports can be printed directly;

7) BTPS automatic correction function, compensate for the impact of environmental differences;

8) Test time and environment temperature display;

9) Calibration function, ensure measurement accuracy;

10) Multiple predicted value can be selected, suitable for different population;

11) Storage of more than 10,000 groups of data;

12) Lung age estimation function;

13) Built-in lithium battery, supports both of AC and DC.

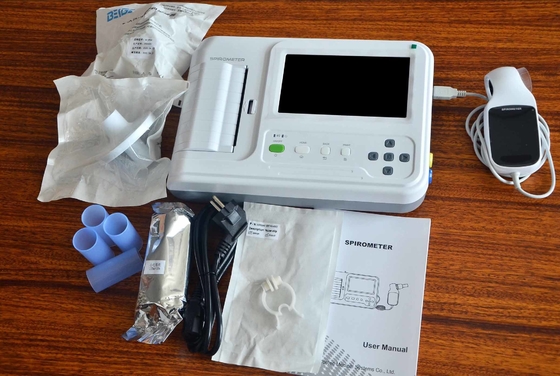

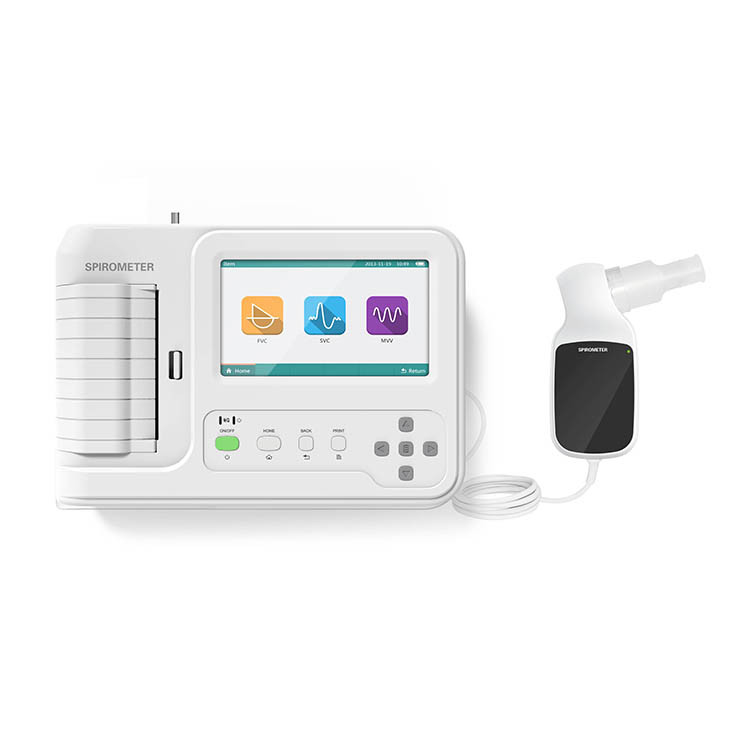

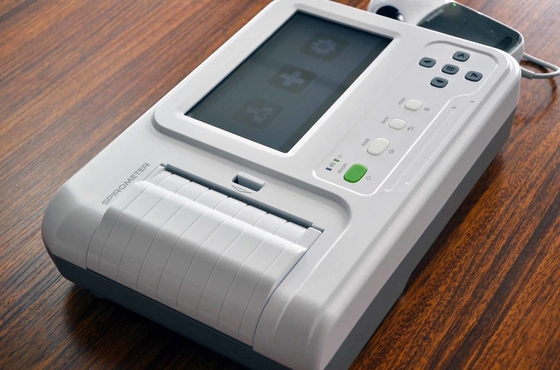

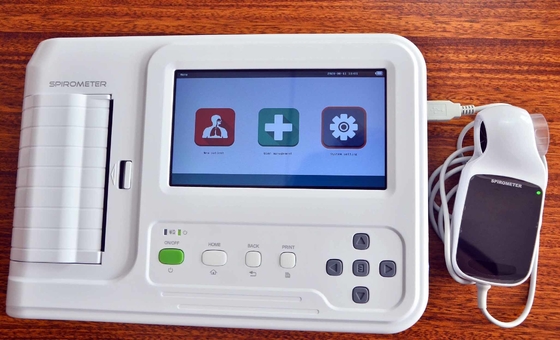

Product Picture





7 Inch Portable Spirometry Machine Mouthpiece 16L/S Lung Function Test Device 07 Inch Portable Spirometry Machine Mouthpiece 16L/S Lung Function Test Device 1
