220v Single Channel ECG Machine 150hz , 12 Bit Digital EKG Machine

220v Single Channel ECG Machine 150hz , 12 Bit Digital EKG Machine

  • 220v Single Channel ECG Machine 150hz , 12 Bit Digital EKG Machine
  • 220v Single Channel ECG Machine 150hz , 12 Bit Digital EKG Machine
  • 220v Single Channel ECG Machine 150hz , 12 Bit Digital EKG Machine
  • 220v Single Channel ECG Machine 150hz , 12 Bit Digital EKG Machine
220v Single Channel ECG Machine 150hz , 12 Bit Digital EKG Machine
Product Details:
Place of Origin: CHINA
Brand Name: CONTEC
Certification: CE
Model Number: ECG100G
Payment & Shipping Terms:
Minimum Order Quantity: 10 Pcs
Price: Negotiable
Packaging Details: 400*280*160mm, 3kg
Delivery Time: Negotiable
Payment Terms: T/T, Western Union, MoneyGram, Debit Card, Credit Card, Paypal
Supply Ability: 100,000 pcs per month
Contact Now
Detailed Product Description
Product Name: Digital Single Channel ECG Machine Material: Plastic
Type: Pathological Analysis Equipments Dimension: 405*300*195mm
Weight: 3kg Frequency Response: 150Hz
Certificate: CE Management System: ISO 13485
High Light:

220v Single Channel ECG Machine


150hz Single Channel ECG Machine


12 bit digital EKG machine


Hospital Medical Supplies CONTEC ECG100G Digital Single Channel ECG EKG Machine


Product Description


This ECG monitor is a basic monitor, which is single channel. It can carry out basic ECG monitoring. Its advantage is that although its function is very simple, its operation is also very simple, and it is equipped with a high-resolution printer, which can simply and clearly display the monitoring results. The ECG monitor is equipped with a rechargeable battery that can be used to detect more than 50 patients. This allows the monitor to be taken further away from the hospital to provide medical services. Our monitor sells well in Africa and Southeast Asia. In some areas with underdeveloped medical conditions, its flexibility and practicability help more patients in remote areas get help. And the price of this monitor is very cost-effective, which can meet the medical needs of economically underdeveloped areas.


Product Specification


Product Name Digital Single Channel ECG Machine
Input Circuit Floating; Protection against Defibrillator effect
Lead Standard 12 Leads, Lead change automatically
Patient Current Leakage <10μA
Input Impedance ≥10ΜΩ
Calibrating Voltage 1mV±3%
A/D Conversion 12 bit
Frequency Response 0.05Hz~150Hz (IEC)
Time Constant >3.2seconds


>100dB (with filter)

EMG Filter 35Hz (-3dB) / 25Hz (-3dB)
Sensitivity 1/2, 1, 2 (cm/mV), Conversion Deviation≤5%
Recording System


8 dots/mm ( vertical )

16 dots/mm ( horizontal, 25mm/sec )

Paper Speed 25, 50mm/s±3%
Recording Paper 50mm,20m, high-speed roll
Input Circuit Current ≤50nA
Power Supply

AC: 220V / 110V, 50/60Hz

DC: 12V rechargeable battery

Skin Voltage Tolerance ±300mV
Noise Level <15uVp-p
Dimension 310mm×230mm×70mm
Dimension of packing 400mm×280mm×160mm
Weight 2.75kg
Safety Standard IEC class I, type CF



Common Feature


1. High-resolution thermal printing array system.

2. Frequency response is as high as 150Hz.

3. Capable of printing continuously on channel trace and annotations including lead mark and parameter such as sensitivity,

paper speed and filter operation status.

4. High resolution digital filter inhibits baseline drift without affecting ECG waveform.

5. One-touch operation.

6. Concept of floating input circuit meets IEC safety standard.

7. Rechargeable battery supporting more than 50 patient examinations.

8. Lead Standard: 12 leads.

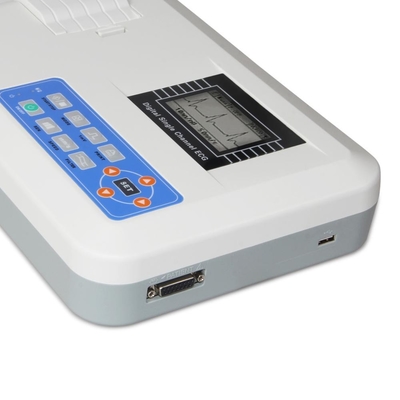

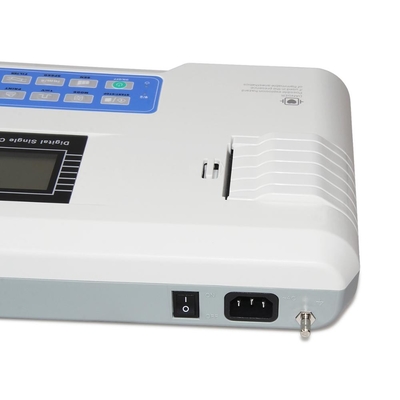

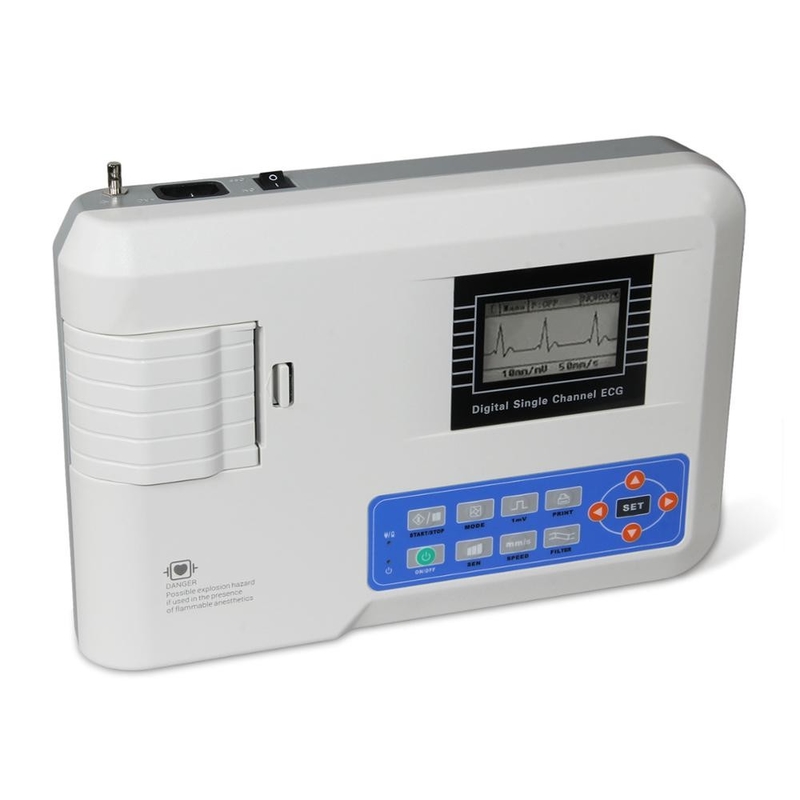

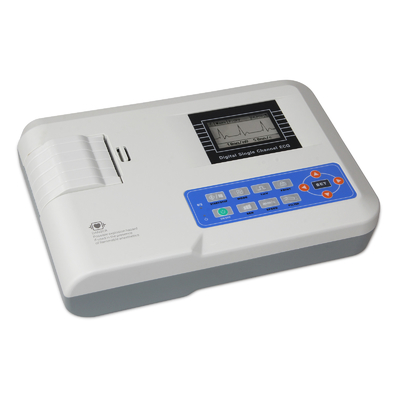

Product Picture


220v Single Channel ECG Machine 150hz , 12 Bit Digital EKG Machine 0220v Single Channel ECG Machine 150hz , 12 Bit Digital EKG Machine 1
