25 To 75L/Min Anesthesia Equipment Portable Veterinary Anaesthetic Machine

25 To 75L/Min Anesthesia Equipment Portable Veterinary Anaesthetic Machine

  • 25 To 75L/Min Anesthesia Equipment Portable Veterinary Anaesthetic Machine
  • 25 To 75L/Min Anesthesia Equipment Portable Veterinary Anaesthetic Machine
  • 25 To 75L/Min Anesthesia Equipment Portable Veterinary Anaesthetic Machine
25 To 75L/Min Anesthesia Equipment Portable Veterinary Anaesthetic Machine
Product Details:
Place of Origin: CHINA
Brand Name: DOLPHINMED
Certification: CE
Model Number: DA1000
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Export standard Carton induce EPE Foam,or fumigation-free wooden box or do as customer requirement.
Delivery Time: Negotiable
Payment Terms: T/T, Western Union, MoneyGram, Debit Card, Credit Card, Paypal
Supply Ability: 50000 pcs per month
Contact Now
Detailed Product Description
Product Name: DA1000 Hospital Medical Equipment For Surgery Portable Anesthesia Machine Power Source: Electric
Warranty: 2 Years After-sale Service: Free Spare Parts
Material: Steel Shelf Life: 3 Years
Instrument Classification: Class III Safety Standard: GB 11246-89
Application: 0.5-100kg Animal Oxygen Flush: 25L/min~75L/min
High Light:

25L min Anesthesia Equipment

,

75L min Anesthesia Equipment

,

portable veterinary anaesthetic machine



DA1000 Hospital Medical Equipment For Surgery Portable Anesthesia Machine



Product Description



Dolphimed delivery the Anesthesia Machine that makes a good performance in Intensive Care Units (ICU), operation room, anesthesiology department and other departments. From high to low acuity, simple to complex cases, pediatric to geriatric patients, Dolphinmed Medical Anesthesia System offers you wide choices that you need in ventilation, monitoring and technique.



Product Specification



Parameter
Description

Anesthesia Vaporier
Temperature,flow and pressure compensation
Flow range:0.2-15L/min Temerature range:15-35℃
Agent:Isoflurane,Seveflurane,Halothane and Enflurane
Fill type:Pour-fill,Easy-fill,Key-fil
CO2 Absorber
Twins canister,2 L volume for sadalime,wth no-return respiration valve and inspiraition valve,avoid gas back flowing.
Flow meter
Mechanical flowmeter O2,N2O and air
1*O2 tubes:0-1L/min, 1-10L/min
1*N2O tubes:0-1L/min, 1-10L/min
1*Air tubes:0--10L/min(optional)
N2O will be auto cut when O2 supply failure
O2 and N2O linkage device,keep O2 not low than 25%
Bellow
Adult bellow and pediatric bellow.
Gauge
TWo gas supply pressure gaugage( O2,N2O )
Three gas working prssure gauage (O2,N2O and air)(optioanal)
One gas airway pressure gauge
Gas supply pressure
(O2,N2O ) air(optioanl)
0.27-0.55Mpa
Mount type
Twins selectatec Bar or cagemout type
Working mode
Semi-open,Semi-closed,Closed or Open sytem
O2 Flush
25-75LPM
Gas switch
Control gas source with starting or stoping
Yokes System(optional)
O2&N2O Pin indexed,backup gas will auto working when central gas supply fail
AGSS
Optional
Electricity
110-240V,50/60HZ,Power consumation≤50W



Common Feature



  • More convenient operating and display systems for clinical operations,suitable for a wide range of anesthesia at adult,pediatric and infant
  • Comprehensive Safety&Alarm system,make sure the operation accuracy and stability
  • 8 inch TFT display with touch screen,shuttle knob design, quick and efficient operation
  • Integrated absorber design with good cable management solution,convenient to discharge and install timely..
  • Powerful ventilation mode meet all complex clinical requirement
  • Three levels alarm system, visual and sound alarm information.
  • The core components are imported from top international and original, and the industrial control chip is chosen
  • High precious sensor and valve technology make sure the pressure ,flow and volume monitor and control at high safety, stability and precision
  • High precious anesthesia vaporizer with temperature,flow and pressure compensation
  • Top-light system design provide more good vision
  • Built-in backup battery provide the emergency power supply to the unit.
  • Low O2 pressure alarm and N2O cut-off protection.

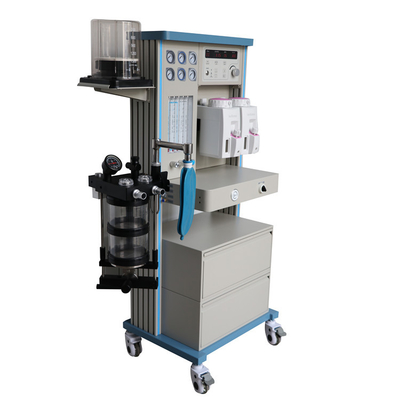

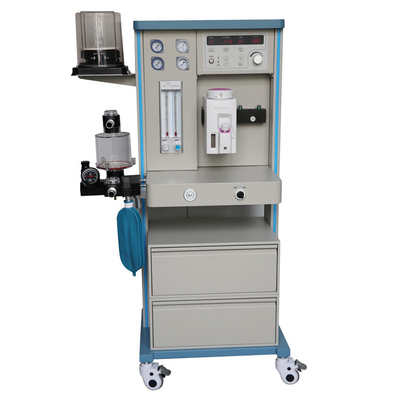

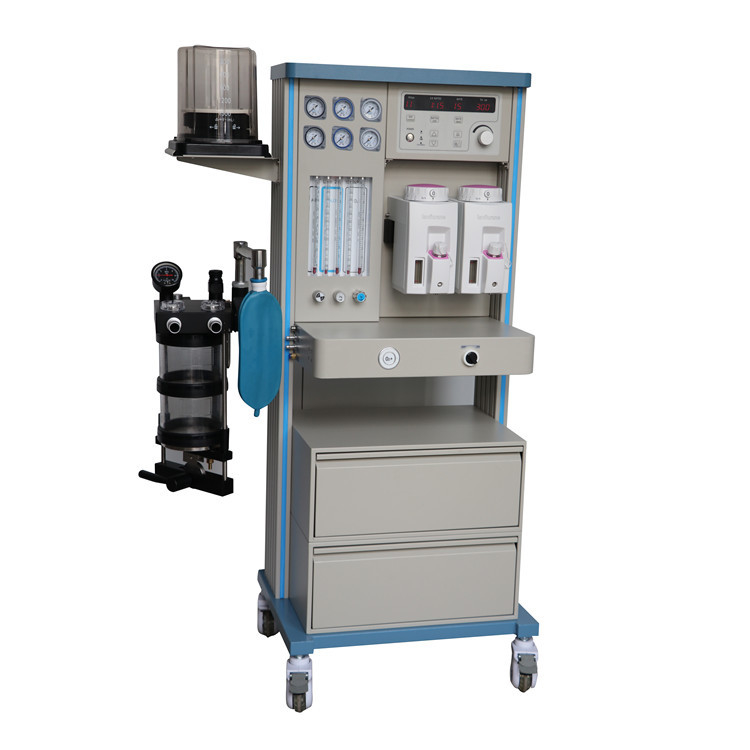

Product Picture



25 To 75L/Min Anesthesia Equipment Portable Veterinary Anaesthetic Machine 025 To 75L/Min Anesthesia Equipment Portable Veterinary Anaesthetic Machine 125 To 75L/Min Anesthesia Equipment Portable Veterinary Anaesthetic Machine 225 To 75L/Min Anesthesia Equipment Portable Veterinary Anaesthetic Machine 3



FAQ



Q1: How long will it take to produce the product?

A: It will usually take 7-10 days for order less than 20,000 pcs; 14-21 days for 20,000 to 100,000 pcs; for order more than 100,000 pcs will take around 30-45 days depends on the customized requirements.



Q2: How should buyer pay to us?

A: We could accept T/T transfer, Credit Card, Debit Card, Western Union, Paypal and Money Gram. And we could accept 30% deposit before start to produce, and 70% balance before the product leave our factory for order more than 20,000 pcs, and we can accept factory and product inspection. We don't accept L/C payment method now.



Q3: What trade terms do we support?

A: Theoretically we can accept all the terms, but what we do most is FOB and CPT, for some country we could offer DDP, like the USA, UK, Australia, France and so on. If you want check whether your country on the list, please contact our customer service staff.



Q4: How long will it take to delivery the product?

A: That will depends on what shipping method you choose, usually sea shipping will take about 30-35 days to delivery to the port, but DDP sea shipping will take longer because they will need to delivery the product to your appointed address, usually it will take about 35-45 days, depends on the distance between the destination country and China. By air cargo will be much sooner, usually it will take 5-10 days to delivery to the appointed airport. Air Express will depends on the country delivery to, like European and North American countries, usually it will take 3-12 days. For Southern east countries, it will take about 2-9 days. For Africa and South American countries, it will take longer. Australia will need to see the local custom policy, usually it will take about 7-12 days.



Q5: What if I receive the product broken?

A: If you receive the product broken, please don't worry. We have three policy to protect your benefit.

1) If the damage rate is less than 5%, we will offer some discount in your next order as compensation.

2) If the damage rate is more than 5%, we could refund you equal value amount or give you the equal quantity product for free in you next order.

3) If you need the product urgently, we could resend the same quantity of the damaged product for free, and we share the shipping cost 50% each side with our customer.
