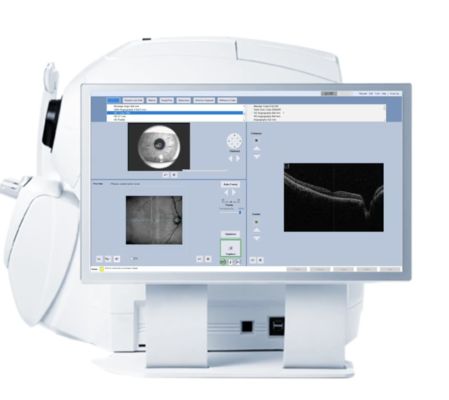

ZEISS CIRRUS 6000 HD-OCT System 100k Scans/Sec with 12mm FOV for Retina and Glaucoma​​

ZEISS CIRRUS 6000 HD-OCT System 100k Scans/Sec with 12mm FOV for Retina and Glaucoma​​
ZEISS CIRRUS 6000 HD-OCT System 100k Scans/Sec with 12mm FOV for Retina and Glaucoma​​

Large Image :  ZEISS CIRRUS 6000 HD-OCT System 100k Scans/Sec with 12mm FOV for Retina and Glaucoma​​

Product Details:
Place of Origin: CHINA
Brand Name: ZEISS
Certification: ce
Model Number: CIRRUS 6000
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Carton
Delivery Time: 10-15days
Payment Terms: L/C,T/T,Westen Union,Money Gram,Paypal/VTB
Supply Ability: 100000pc/month
Contact Now Chat Now

ZEISS CIRRUS 6000 HD-OCT System 100k Scans/Sec with 12mm FOV for Retina and Glaucoma​​

Description
Product Name: ZEISS CIRRUS 6000 Technical Principle: Spectral Domain Optical Coherence Tomography
Scanning Speed: Up To 68,000 A-Scans Per Second Axial Resolution: 5 Micrometers (μm)
Horizontal Resolution: Approximately 15 μm (depending On The Lens Used) Scanning Depth: 2.0 Millimeters
Highlight:

ZEISS CIRRUS 6000 HD-OCT system

,

OCT system for retina and glaucoma

,

HD-OCT system with 100k scans/sec

ZEISS CIRRUS 6000 HD-OCT System 100k Scans/Sec with 12mm FOV for Retina and Glaucoma
The ZEISS CIRRUS 6000 is a high-performance optical coherence tomography (OCT) system designed for comprehensive ophthalmic diagnostics. With a scanning speed of 100,000 A-scans per second, it delivers high-definition widefield imaging of the retina and anterior segment, supporting clinical decision-making for retinal diseases, glaucoma, and corneal conditions. The system integrates advanced quantification tools, enhanced cybersecurity protocols, and seamless data management to streamline workflow in modern ophthalmic practices.
Key Features and Advantages
  • High-Speed HD Imaging
    • Captures 100,000 scans per second, enabling a widefield view of up to 12mm in a single scan.
    • Provides detailed OCT and OCT angiography (OCTA) visualization of retinal microvasculature.
  • Multi-Layer Segmentation and Quantification
    • Automatically segments seven retinal layers: ILM, RNFL, IPL, INL, OPL, IS/OS junction, and RPE.
    • AngioPlex Metrix tools quantify OCTA data for both retinal and glaucoma applications.
  • Clinical Software Suite
    • Glaucoma Management: Guided progression analysis (GPA) with an expanded reference database (870 patients).
    • Macular Change Analysis: Tracks disease progression between visits.
    • Corneal Imaging: Includes epithelial thickness mapping and widefield HD corneal scans.
  • Enhanced Cybersecurity
    • Complies with FIPS standards and supports BitLocker encryption for data at rest.
    • Uses DICOM Transport Layer Security (TLS) for secure data transmission.
    • Integrates with EMR systems via JPEG2000 or JPEG Baseline compression.
  • Operational Efficiency
    • Compatible with ZEISS FORUM for centralized data review.
    • Supports Windows 10/11 and Windows Server environments.
Clinical Applications
  • Retinal Diseases: Diagnose and monitor AMD, diabetic retinopathy, and macular holes.
  • Glaucoma: Assess RNFL thickness and track progression with longitudinal analysis.
  • Anterior Segment: Evaluate corneal pathologies via high-resolution cross-sectional imaging.
Technical Value
The CIRRUS 6000 combines speed, resolution, and data security to address evolving ophthalmic needs. Its widefield OCTA reduces the need for multiple scans, while robust cybersecurity ensures compliance for institutional use. By integrating diagnostic tools for posterior and anterior segments, it serves as a unified platform for comprehensive eye care.
ZEISS CIRRUS 6000 HD-OCT System 100k Scans/Sec with 12mm FOV for Retina and Glaucoma​​ 0 ZEISS CIRRUS 6000 HD-OCT System 100k Scans/Sec with 12mm FOV for Retina and Glaucoma​​ 1 ZEISS CIRRUS 6000 HD-OCT System 100k Scans/Sec with 12mm FOV for Retina and Glaucoma​​ 2 ZEISS CIRRUS 6000 HD-OCT System 100k Scans/Sec with 12mm FOV for Retina and Glaucoma​​ 3
Brand Assurance: As part of ZEISS's legacy in medical imaging, the system upholds precision engineering and clinical validation, supported by global service networks.
