OLYMPUS EU-ME3 Ultrasound Image Processor for Endosonography

Large Image : OLYMPUS EU-ME3 Ultrasound Image Processor for Endosonography

Product Details:

Place of Origin:	Japan
Brand Name:	OLYMPUS
Certification:	ce
Model Number:	EU-ME3

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	Negotiable
Packaging Details:	Carton
Delivery Time:	10-15days
Payment Terms:	L/C,T/T,Westen Union,Money Gram,Paypal/VTB
Supply Ability:	100000pc/month

Contact Now Chat Now

OLYMPUS EU-ME3 Ultrasound Image Processor for Endosonography

Description

Product Name:	Ultrasound Image Processor	Voltage:	220 – 240 V AC
Voltage Fluctuation:	Within ± 10%	Frequency:	50/60 Hz
Frequency Fluctuation:	Within ±1%	Power Consumption:	340 VA
Highlight:	OLYMPUS EU-ME3 ultrasound processor , endosonography image processor , medical diagnostic ultrasound equipment

OLYMPUS EU-ME3 Ultrasound Image Processor for Endosonography

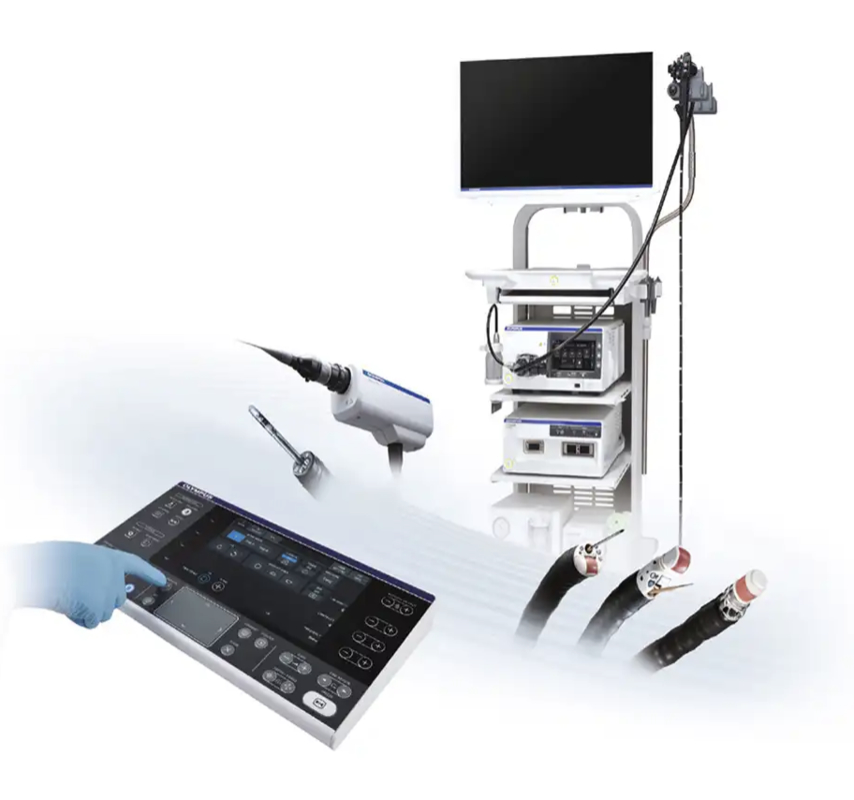

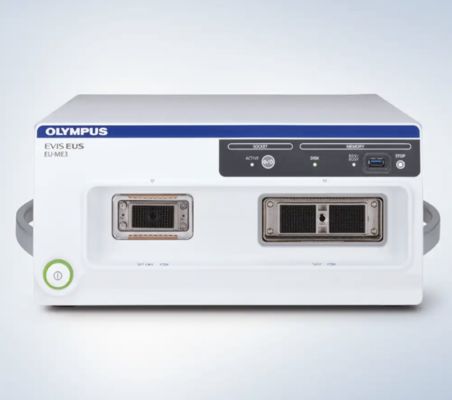

The EVIS EUS EU-ME3 Ultrasound Image Processor is an advanced endoscopic ultrasound image processor designed to significantly enhance diagnostic capabilities in endoscopic procedures. By integrating superior imaging technologies with user-centric design, this processor expands the scope and precision of endosonography.

Core Imaging Technologies

Enhanced B-mode & Elastography

Delivers substantially improved B-mode image quality compared to its predecessor (EU-ME2)
Elastography function visualizes tissue stiffness (strain) during compression and retraction
Provides valuable information for characterizing tissue properties

Advanced Harmonic Imaging

Utilizes Contrast Harmonic Echo (CHE) to image harmonic components from ultrasound contrast agents
Includes C-THE mode for biological tissue signals
Tissue Harmonic Echo (THE) mode creates images with improved resolution, better signal-to-noise ratio, and reduced artifacts

Sophisticated Doppler Modes

Three core Doppler modes: Color Flow, Power Flow, and Pulsed Wave Doppler (PWD)
H-Flow mode provides directional blood flow visualization with less blooming
Particularly useful for imaging small vessels around the echoendoscope tip

Enhanced Usability and Workflow

Quantitative Assessment Tools

Shear Wave Quantification (SWQ) provides absolute value of tissue stiffness within a region of interest
Calculates shear wave propagation velocity for quantitative tissue assessment

User-Friendly Operation

Simplifies targeting with adjustable Doppler region of interest (ROI)
Position and size can be easily adjusted via trackpad or touch panel buttons
Compact body design for efficient clinical use

System Compatibility and Versatility

Broad Compatibility

Integrates electronic and mechanical scanning technologies
Compatible with both echoendoscopes and miniature probes
Creates a holistic endoscopy solution for diverse applications

Customizable Features

Software options available to meet specific facility needs
Functions can be selected and added based on clinical requirements and budget

The EVIS EUS EU-ME3 combines high-resolution imaging, quantitative assessment tools, and operational flexibility to support precise diagnostics and complex interventions in gastroenterology and pulmonary medicine.
