QV-500 Vein Finder with Multi-Size Projection and 7 Color Modes 280g Portable for Venipuncture

Large Image : QV-500 Vein Finder with Multi-Size Projection and 7 Color Modes 280g Portable for Venipuncture

Product Details:

Place of Origin:	Japan
Brand Name:	HDRMEDICO
Certification:	ce
Model Number:	QV-500

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	Negotiable
Packaging Details:	Carton
Delivery Time:	10-15days
Payment Terms:	L/C,T/T,Westen Union,Money Gram,Paypal/VTB
Supply Ability:	100000pc/month

Contact Now Chat Now

QV-500 Vein Finder with Multi-Size Projection and 7 Color Modes 280g Portable for Venipuncture

Description

Product Name:	Vein Finder	Weight:	280g
Product Size:	20cm (L) 6.2cm (W) 5.5cm (H)	Batteries:	Panasonic 3400mAh Lithium Battery
Power:	DC 5V 2A	The Adapter:	100V-240V. AC 50Hz-60Hz; 5V 2A
Highlight:	QV-500 vein finder with multi-size projection , portable vein finder for venipuncture , vein finder with 7 color modes

QV-500 Vein Finder with Multi-Size Projection and 7 Color Modes 280g Portable for Venipuncture

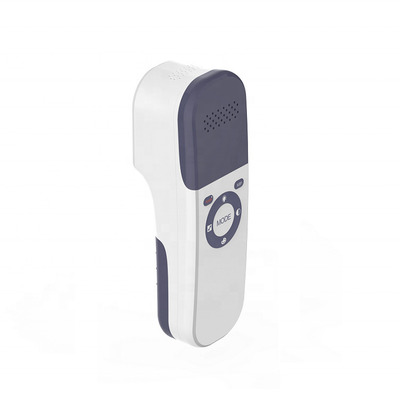

The QV-500 Vein Finder is a portable medical imaging device designed to project real-time vascular maps onto the skin surface. Using harmless infrared light and advanced projection technology, it assists healthcare professionals in visualizing vein structures for accurate venipuncture and vascular procedures. The device combines ergonomic design with customizable settings to adapt to diverse clinical needs, from pediatric care to complex surgical scenarios.

Key Features

Multi-Size Imaging Modes
- Offers three projection sizes adjustable for adults, children, and infants, ensuring optimal visibility for different patient demographics and specific anatomical areas.
Advanced Projection Technology
- Employs American TI projection technology with 7 color modes to accommodate varying skin tones and clinical environments.
- Features 5 brightness levels, an inversion mode (reduces arm hair interference), and an enhancement mode for improved vessel clarity.
Ergonomic and Portable Design
- Weighs only 280g with compact dimensions (20*6.2*5.5 cm), facilitating comfortable handheld use.
- Includes a removable battery compartment with a Panasonic 3400mAh lithium battery, supporting extended operation.
- Compatible with optional table stands and mobile trolleys for flexible clinical setups.
Smart Operational Modes
- Sleep Mode: Enters low-power state during short intervals, quickly reactivated when needed.
- Power Monitoring: Displays real-time battery status and alerts users when power is low.
- Calibration Card: Ensures projection accuracy (±0.3mm) and consistent performance.

Clinical Applications

Venipuncture Assistance: Projects vein pathways to increase first-attempt success rates, reducing patient discomfort and procedure time.
Pediatric and Neonatal Care: Gentle imaging suitable for infants and children with delicate veins.
Surgical Support: Provides vascular mapping for plastic surgery, IV placements, and critical care procedures.
Emergency and Mobile Use: Lightweight and portable for fieldwork, ambulances, or temporary clinics.

Advantages

Efficiency: Reduces venipuncture attempts by 30-50% in clinical studies, minimizing patient trauma.
Safety: Non-invasive infrared technology poses no radiation risk.
Versatility: Adapts to diverse patients (obesity, dark skin, dehydrated cases) where veins are difficult to locate.
Compliance: Includes CNAS certification and meets international medical device standards.

The QV-500 Vein Finder exemplifies innovation in clinical visualization tools, bridging technology and practicality to enhance patient care outcomes. Its precision and adaptability make it a valuable asset for modern healthcare settings.

Specifications

Light	The human body's harmless infrared light
Distance	15-25cm
Accuracy	±0.3mm
Noise	520dB
