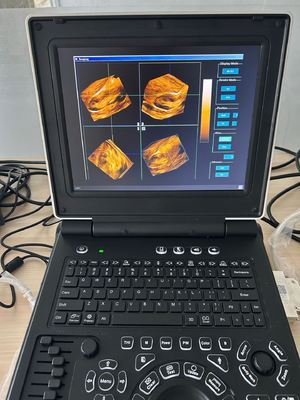

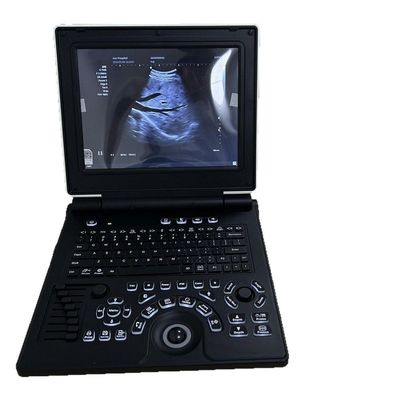

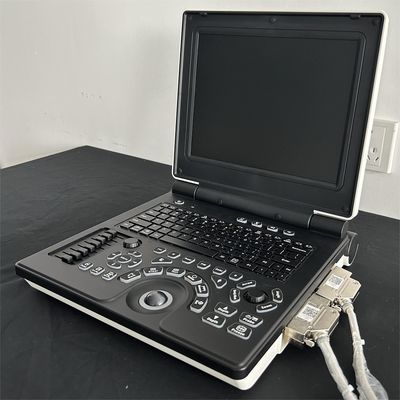

E20 Veterinary Color Doppler Ultrasound Portable System with Multi-Species Presets 7 Probes Selectable

E20 Veterinary Color Doppler Ultrasound Portable System with Multi-Species Presets 7 Probes Selectable
E20 Veterinary Color Doppler Ultrasound Portable System with Multi-Species Presets 7 Probes Selectable E20 Veterinary Color Doppler Ultrasound Portable System with Multi-Species Presets 7 Probes Selectable E20 Veterinary Color Doppler Ultrasound Portable System with Multi-Species Presets 7 Probes Selectable

Large Image :  E20 Veterinary Color Doppler Ultrasound Portable System with Multi-Species Presets 7 Probes Selectable

Product Details:
Place of Origin: Japan
Brand Name: HDRMEDICO
Certification: ce
Model Number: E20
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Carton
Delivery Time: 10-15days
Payment Terms: L/C,T/T,Westen Union,Money Gram,Paypal/VTB
Supply Ability: 100000pc/month
Contact Now Chat Now

E20 Veterinary Color Doppler Ultrasound Portable System with Multi-Species Presets 7 Probes Selectable

Description
Product Name: Veterinary Color Doppler Ultrasound Portable System Display: 12.1-inch LCD, 256 Grayscale Levels
Battery​: 3200 MAh Li-ion (3–4 Hours Continuous Use) Penetration Depth​: 1–400 Mm Adjustable
Probe Connectors​: 2 Active Ports Supporting Simultaneous Use Power Supply​: 100–240 V AC, 50/60 Hz
Highlight:

veterinary color Doppler ultrasound system

,

portable ultrasound with multi-species presets

,

veterinary ultrasound system with 7 probes

E20 Veterinary Color Doppler Ultrasound Portable System with Multi-Species Presets 7 Probes Selectable
The E20 Veterinary Color Doppler Ultrasound Portable System is a portable, veterinary-specific imaging solution designed for animal hospitals, farms, and mobile clinical settings. Combining a lightweight laptop-style design with advanced imaging technologies, it supports comprehensive diagnostic applications across diverse animal species—from equine and bovine reproduction to small-animal musculoskeletal and abdominal examinations.
Key Features
Portable & Ergonomic Design
  • Weighing under 2.5 kg with a 12.1-inch HD LCD display
  • Slim, laptop-like form factor for easy transport
  • Windows 7 platform with backlit keyboard and intuitive control knob
Multi-Species Imaging Capabilities
  • Pre-loaded anatomical body marks (>64) and species-specific presets
  • 7 language options (Chinese, English, Spanish, Russian, French, Portuguese, German)
Advanced Imaging Modes
  • THI (Tissue Harmonic Imaging) for clearer visualization
  • Dynamic Range Adjustment (80-280 dB) for optimal image clarity
  • Color Doppler Modes including CFM, PDI, and PW for vascular assessments
Modular Transducer System
Supports 7 interchangeable probes with frequency ranges from 2.0-12.0 MHz:
  • Convex (R60): Abdominal, obstetric, and urological scans
  • Linear (L40): Vascular, musculoskeletal, and small-parts imaging
  • Micro-Convex (R15/R20): Cardiac and equine abdominal studies
  • Transrectal Linear (L64): Bovine/equine reproduction and egg determination
Data Management & Connectivity
  • Built-in 120 GB SSD with DICOM compatibility
  • HDMI, VGA, USB, and LINE-OUT ports for external display and data export
  • Optional 3D software for volumetric reconstruction
Clinical Applications
  • Large-Animal Reproduction: Pregnancy checks and fertility assessments
  • Equine Musculoskeletal: Tendon/ligament evaluation
  • Small-Animal Diagnostics: Abdominal, cardiac, and thyroid imaging
  • Poultry & Aquaculture: Egg development monitoring and fish sexing
Operational Advantages
  • Rapid Deployment: Boots in <30 seconds; reduces exam time by 40%
  • Durability: IP42-rated dust/moisture resistance
  • Cost-Efficiency: Eliminates need for species-specific dedicated devices
The E20 system empowers veterinarians to deliver high-quality diagnostic care across diverse settings, bridging the gap between clinical precision and operational flexibility. Its species-adaptive design ensures relevance for both routine check-ups and complex surgical planning.
