SIMV IPPV Anesthesia Trolley 1500ml Anesthesia Machine Bar Cart ICU Single Vapourizer

JINLING 820 High Quality 5.7" LCD Display Single Vapourizer Hospital ICU Anesthesia Machine

General Introduction

This anesthetic is our most cost-effective machine. While ensuring that the products meet the needs of the hospital for most of the functions of the anesthesia machine, we save some uncommon functions and accessories. It saves costs without reducing product quality and functionality. Our anesthesia machine has one vaporisers and a 5.7-inch LCD display, which can support A/C, IPPV, SIPPV, IMV, SIMV, MANUAL working modes. This anesthesia machine is mainly sold to Africa, South America and parts of Asia area and is highly praised by hospitals and dealers.

Product Specification

Common Feature

• Operating Modes: Pneumatically driven & electronically controlled, closed,semi-closed and semi-open

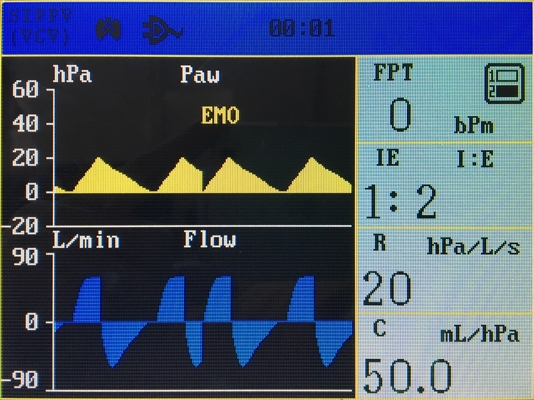

• Anesthesia Ventilator: Built-in 5.7 inch TFT display,able-display
• Pressure-Time and Frequency-Time, displayed waveforms can be cycledinstantly with a touch of a button
• Standard integrated metallic modular respiratory circuit; completely solvesthe problem of gas sealing under high temperature disinfection, easy to cleanand disinfect
• Equipped with electronic pressure differential flow sensor, importedrespiratory control valve
• Vaporizer: lmported tank components assembled locally; Enflurane,lsoflurane and Sevoflurane (Halothane optional).Also possesses
• self-compensating functionality
• High precision four tube flowmeter, fitted with interlocking oxygen-nitrousoxide supply, guarantees oxygen output is never lower than 21%
• Nonhazardous environmentally friendly frame, with automated self-checkingfunction during startup and an automatic self-calibrating sensor
• Power Failure Support Functions: Automatically converts to backup powermode during AC power outages
• Alarms: Audible and/or visual alarms for tidal volume, airway pressure,
• asphyxia, power failure, oxygen failure and other alarms,also features a alarmquery function
• Equipped with advanced international rotating Na-lime tank, uses importedPPsU material and temperature resistant to 134℃
• Multi-parameter Patient Model: Optional

Detailed Specification

Pneumatically driven and electrically controlled system
Built-in ventilator, 5.7” LCD display screen
Closed; Semi-Closed; Semi-Open wotking mode
Applied for Adult and Pediatric
Main technical specifications:
Gas requirement: Medical oxygen and nitrous oxide with a pressure ranging from O2 & NO2: 0.32~0.6 MPa.
4-tubes Flowmeters, O2 & N2O ; 0.1L/Min ~ 10L / Min;
Oxygen Flush: 25~75 L / Min
Respiration Mode: A/C,IPPV(VCV),SIPPV(VCV),IMV,SIMV,MANNUAL
Tidal Volume: Adjustable range: 50 ~ 1500 ml, Display range:0~2000ml
I/E Ratio: 8:1~1:10
One vaporizer: Enflurane/ Isoflurane/Sevoflurane (Optional:Halothane)
Vaporizer Setting Range: 0.5%~5%
Respiration Frequency : 1~100 bpm;
Lung compliance: ≤30 mL / kPa
IMV frequency: 1~20 bpm;
PEEP: 0~2.0KPa
Ptr: -1.0~2.0KPa
CO2 absorber capacity : 1 kg
Inspiratory Plateau: 0~1 S ;
Optional: Patient monitor

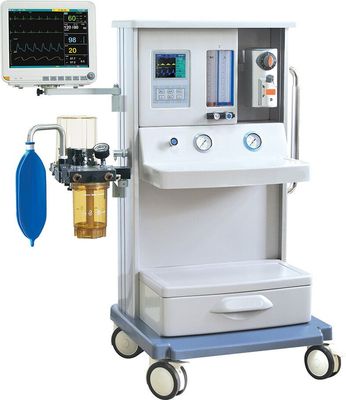

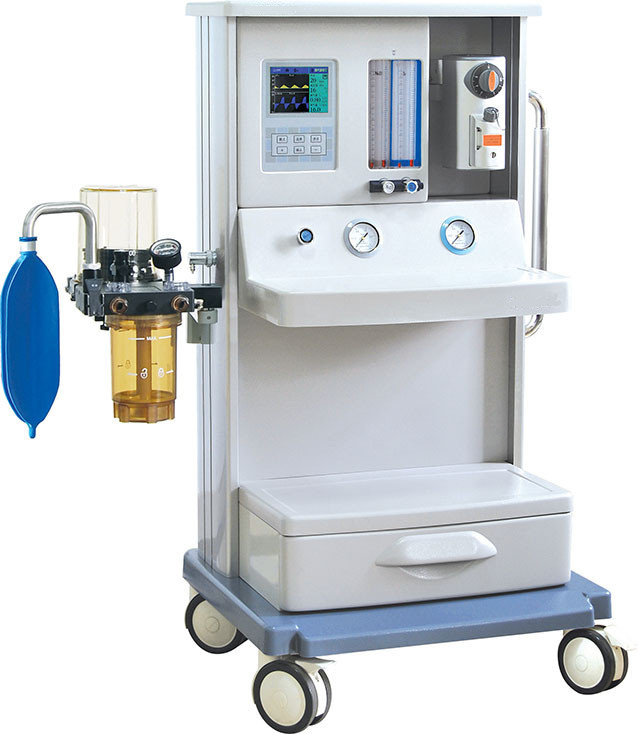

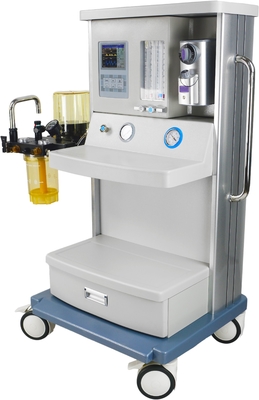

Product Picture
