Dental Low-Speed Modular Handpiece System Pneumatic Motor with Straight and Contra Angle for Grinding and Polishing

Dental Low-Speed Modular Handpiece System Pneumatic Motor with Straight and Contra Angle for Grinding and Polishing
Dental Low-Speed Modular Handpiece System Pneumatic Motor with Straight and Contra Angle for Grinding and Polishing

Large Image :  Dental Low-Speed Modular Handpiece System Pneumatic Motor with Straight and Contra Angle for Grinding and Polishing

Product Details:
Place of Origin: CHINA
Brand Name: HDRMEDICO
Certification: /
Model Number: 02
Payment & Shipping Terms:
Minimum Order Quantity: 10 pc
Price: Negotiable
Packaging Details: Carton
Delivery Time: 10-15days
Payment Terms: L/C,T/T,Westen Union,Money Gram,Paypal/VTB
Supply Ability: 5000pcs/month
Contact Now Chat Now

Dental Low-Speed Modular Handpiece System Pneumatic Motor with Straight and Contra Angle for Grinding and Polishing

Description
Product Name: Dental Low-Speed Modular Handpiece Clamping Method: Press Type
Noise: < 70dB Working Air Pressure: 0.3 MPA
Applicable Needles: 2.35mm In Diameter (ISO 1797-1) Maximum Speed: Approximately 20,000RPM
Highlight:

dental low-speed handpiece system

,

pneumatic dental motor for grinding

,

straight contra angle handpiece polishing

Dental Low-Speed Modular Handpiece System Pneumatic Motor with Straight and Contra Angle for Grinding and Polishing

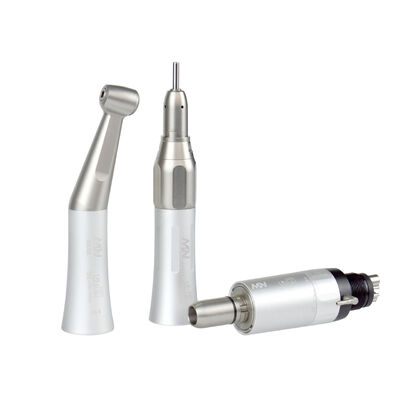

The dental low-speed handpiece system consists of a modular design combining a pneumatic drive motor, straight handpiece (for grinding), and curved handpiece (for polishing). This triple-component setup allows clinicians to flexibly switch between tools based on procedural needs, ensuring precision and efficiency in dental operations such as crown preparation, polishing, and restorative work.
Key Components & Functions
  • Pneumatic Drive Motor
    • Serves as the core power unit, connecting to dental chairs via a 4-hole interface
    • Features forward/reverse rotation control and an integrated internal water channel for cooling during procedures
    • Requires connection to straight or curved handpieces to operate—cannot be used alone
  • Straight Handpiece (for Grinding)
    • Designed for grinding tasks, with an ergonomic grip and compatibility with NSK-system dental chairs
    • Constructed from stainless steel, supporting autoclave sterilization (up to 134°C)
  • Curved Handpiece (for Polishing)
    • Optimized for polishing, featuring an extended head for better access to posterior teeth
    • Innovative spring-loaded needle ejection mechanism replaces traditional lever-based designs, improving tool-change efficiency
    • Made of lightweight yet durable aluminum alloy and stainless steel
Technical Highlights
  • Modular Compatibility: Straight and curved handpieces share the same motor interface, allowing quick swaps during procedures
  • Human-Centric Design: Anti-slip grips and balanced weight distribution reduce hand fatigue during prolonged use
  • Hygiene & Durability: All components tolerate autoclaving (134°C-160°C), meeting clinical sterilization standards
Clinical Applications
  • Restorative Dentistry: Straight handpiece for crown/tooth preparation; curved handpiece for polishing restorations
  • Prosthodontics: Grinding temporary crowns or adjusting prostheses with the straight handpiece
  • Preventive Care: Polishing teeth after cleaning with the curved handpiece
Advantages
  • Efficiency: Modular design reduces equipment costs and simplifies maintenance
  • Precision: Balanced motors and handpieces minimize vibration for smoother operations
  • Adaptability: Compatible with mainstream dental chair systems (e.g., NSK)
This system integrates practicality with clinical reliability, making it a versatile solution for dental practices prioritizing workflow optimization and tool flexibility.
Dental Low-Speed Modular Handpiece System Pneumatic Motor with Straight and Contra Angle for Grinding and Polishing 0
Dental Low-Speed Modular Handpiece System Pneumatic Motor with Straight and Contra Angle for Grinding and Polishing 1
Dental Low-Speed Modular Handpiece System Pneumatic Motor with Straight and Contra Angle for Grinding and Polishing 2
Dental Low-Speed Modular Handpiece System Pneumatic Motor with Straight and Contra Angle for Grinding and Polishing 3
