JINGUANG Dental Vacuum Forming Machine Thermoforming Machine for Orthodontic Retainers

JINGUANG Dental Vacuum Forming Machine Thermoforming Machine for Orthodontic Retainers
JINGUANG Dental Vacuum Forming Machine Thermoforming Machine for Orthodontic Retainers

Large Image :  JINGUANG Dental Vacuum Forming Machine Thermoforming Machine for Orthodontic Retainers

Product Details:
Place of Origin: CHINA
Brand Name: JINGUANG
Certification: /
Model Number: /
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: Carton
Delivery Time: 10-15days
Payment Terms: L/C,T/T,Westen Union,Money Gram,Paypal/VTB
Supply Ability: 5000pcs/month
Contact Now Chat Now

JINGUANG Dental Vacuum Forming Machine Thermoforming Machine for Orthodontic Retainers

Description
Product Name: Dental Vacuum Forming Machine Power Supply Voltage: 220V/50HZ ± 10%
Power Supply Power: 1000W Overall Dimensions: 25x21x30cm
Overall Weight: 6kg Color: White Blue
Highlight:

dental vacuum forming machine for retainers

,

orthodontic thermoforming machine dental

,

dental retainer forming machine

JINGUANG Dental Vacuum Forming Machine Thermoforming Machine for Orthodontic Retainers

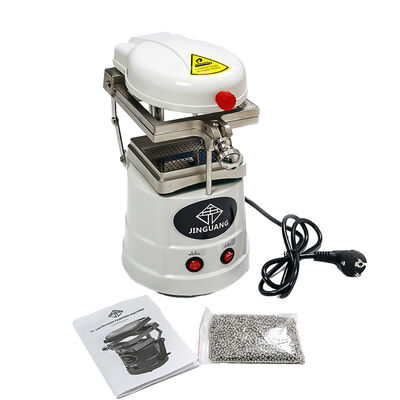

The JINGUANG Dental Vacuum Forming Machine is a professional device designed for fabricating dental appliances through vacuum thermoforming technology. This machine enables precise molding of specialized plastic sheets into custom-fit dental aids, such as orthodontic retainers, fluoride trays, and occlusal guards, with high accuracy and rapid production cycles.
Key Features
  • Versatile Applications:
    • Orthodontic Retainers: Forms transparent, comfortable retainers without clasps, using 0.8-1.5 mm thick plastic sheets
    • Fluoride Trays & Occlusal Guards: Creates trays for fluoride application or protective dental splints
    • Baseplate & Appliance Fabrication: Molds temporary or permanent baseplates and orthodontic splints
  • Precision Engineering:
    • Controlled Heating System: Heats plastic sheets uniformly until a 2 cm sag is achieved, ensuring optimal thickness distribution
    • Vacuum Suction: Applies 15-20 seconds of vacuum pressure to tightly conform sheets to models, minimizing gaps
    • High-Accuracy Molds: Produces finely detailed models that are sturdy and durable
  • User-Friendly Workflow:
    • Step-by-Step Operation:
      • Place and clamp the plastic sheet on the heating station
      • Position the石膏 model on the vacuum platform
      • Heat the sheet until it sags 2 cm, then lower it onto the model
      • Activate vacuum suction (15-20 seconds), cool, and trim edges to 0.5 mm below the gingival margin
    • Post-Forming Adjustments: Allows refining edges with an alcohol lamp for better fit
  • Efficiency & Quality:
    • Rapid processing reduces manual labor, ideal for clinics requiring same-day appliance delivery
    • Ensures tight seals and comfortable fits for enhanced patient compliance
Applications
  • Orthodontics: Clear retainers, space maintainers
  • Preventive Care: Fluoride trays, night guards
  • Prosthodontics: Temporary baseplates
Advantages
  • High Precision: Vacuum technology eliminates air pockets for seamless adaptation
  • Cost-Effective: Reduces outsourcing needs for dental labs or clinics
  • Compact Design: Fits easily into clinical workflows without extensive training
The JINGUANG Vacuum Forming Machine streamlines the production of custom dental appliances, combining clinical efficacy with operational simplicity. Its ability to deliver precise, clinic-ready devices in minutes makes it a valuable tool for modern dental practices.
