BPU60 Portable Veterinary Ultrasound Versatile Color Doppler Veterinary Ultrasound Equipment

BPU60 Portable Veterinary Ultrasound Versatile Color Doppler Veterinary Ultrasound Equipment

  • BPU60 Portable Veterinary Ultrasound Versatile Color Doppler Veterinary Ultrasound Equipment
  • BPU60 Portable Veterinary Ultrasound Versatile Color Doppler Veterinary Ultrasound Equipment
  • BPU60 Portable Veterinary Ultrasound Versatile Color Doppler Veterinary Ultrasound Equipment
BPU60 Portable Veterinary Ultrasound Versatile Color Doppler Veterinary Ultrasound Equipment
Product Details:
Place of Origin: CHINA
Brand Name: BMV
Certification: CE
Model Number: BPU60
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Toolbox packed in Carton
Delivery Time: Negotiable
Payment Terms: T/T, Western Union, MoneyGram, Debit Card, Credit Card, Paypal
Supply Ability: 50000 pcs per month
Contact Now
Detailed Product Description
Product Name: BPU60 Portable Veterinary Ultrasound Versatile Color Doppler Veterinary Ultrasound Equipment Properties: Obstetric Appliances
Screen Size: 15" High Resolution LED(rotatable 0°~45°) Ultrasound Platform: Based On Linux, Stable Performance, Security Data
Scanning Depth: Up To 351mm Transducer Type: Convex Array, Linear Array, Rectal Array
Imaging Modes: B, B/B, B/M, M, 4B, CFM, DPI, PW Transducer Frequency: 2-15 Mhz
Gray Scale Levels: Transducer Element Battery: Built In 8000mAh



BPU60 Portable Veterinary Ultrasound Versatile Color Doppler Veterinary Ultrasound Equipment



Product Description



BPU60 Vet is a portable veterinary color Doppler ultrasound with superior image performance and diverse applications. Based on the advanced imaging technology and ergonomic design, it's equipped with superior image quality, comprehensive functions, high cost effectiveness and mobility, which make it applicable to scans of different animals, for example farm animals, pets, etc. With this machine, we are capable to provide very comprehensive imaging system solutions.



Product Specification



Name BPU60 Portable Veterinary Ultrasound Versatile Color Doppler Veterinary Ultrasound Equipment
Monitor:

15'' high resolution LED monitor(Sharp Japan brand )with tilting to view it freely and comfortably

Resolution: 1024×768

Brightness Adjustable

Max Opening Angle:45°

System Dimension: Height: 402mm Width: 385mm Depth: 98mm
Weight: Around 7.5 kg (Include Battery)
Keyboard:Ultrasound platform Based on linux, stable performance, security data
All backlit keyboard,realizes easy work even under weak light
Imaging Modes: B, B/B, B/M, M, 4B, CFM, DPI, PW
Gray scale levels: 256
Transducer element 128
Transducer Type: Convex Array, Linear Array, Rectal linear Array,micro-convex array,trans-virginal array,Phased array probe
Transducer frequency: 2-15 Mhz
Zoom 10 times
Cine review auto
Transducer connector: 2 active transducer connectors support quick switch between different probe needs
Scanning depth: up to 351mm
DICOM3.0: Standard
USB 3.0 2
Video output 1
Foot switch optional
Storage 500GB
Battery Included,continuous working more than 2 hours



Application scenarios:

Applicable to equine, large animal, small animal, zoo mammal, and marine mammal medicine body scans, for example, Abdomen, Reproduction, Gynecology, Cardiology, Small Parts
Veterinary clinic & research departments and livestock farm, Zoo, etc.



Common Feature



  • Advanced imaging technology and superior image quality can provide fast and precise scans.
  • Applicable to scans of Equine, Bovine, Ovine, Swine, Feline, Canine, etc.
  • Applicable to different diagnosis of Abdomen, Obstetrics, Cardiology, small parts, vascular, tendon, etc.
  • Comprehensive probe options can meet dfferent clinic demands.
  • Powerful measurement software can provide comprehensive diagnostic bases.
  • Smart design and mobility make it easy to carry,
  • Built-in battery can support long- time outdoor diagnosis.
  • Efficient workflow can provide easy and comfortable operation experience



Advanced imaging platform

  • High-performance image processing chips can provide more powerful algorithm
  • Large storage capacity can provide more patient data base



Unique imaging technology, superior image quality

  • High Precision dynamic focus imaging
  • Speckle noise reduction technology
  • New image enhancement technology
  • Pulse-inverted tissue harmonic imaging
  • Multi-beam parallel processing technology



Comprehensive Clinical Application Solutions

  •  Automatic trace on PW frequency map
  • Real time dual-display 2D images and color flow images
  • Measurement packages of all parts meet with clinical needs of different applications
  • Double transducer port is designed to meet the different clinical applications
  • Large capacity removable built-in battery supports long time outdoor operation



Supper Data Management System

  • Built-in workstation helps quickly searching patient data and reviewing cines, which facilitates the doctor's operation
  • The supported DICOM 3.0can communicate with PACS system of the hospital seamlessly



Ergonomic Appearance Design

  • 15 LCD medical-used high resolution screen display brings winder visual angle and dlearer image.
  • Control panel is backlighted, waterproof and antisepticised.
  • Two USB ports are at the side of the system, which is more convenient for use.

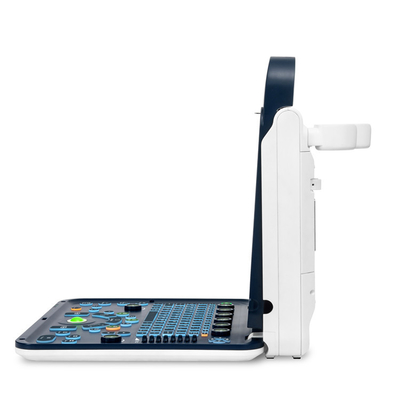

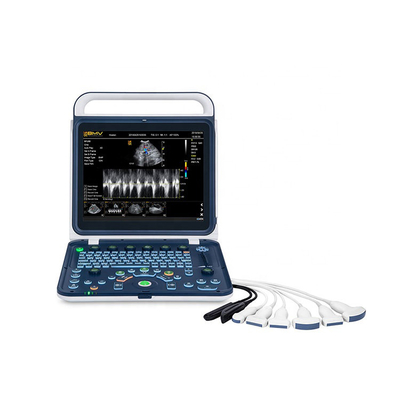

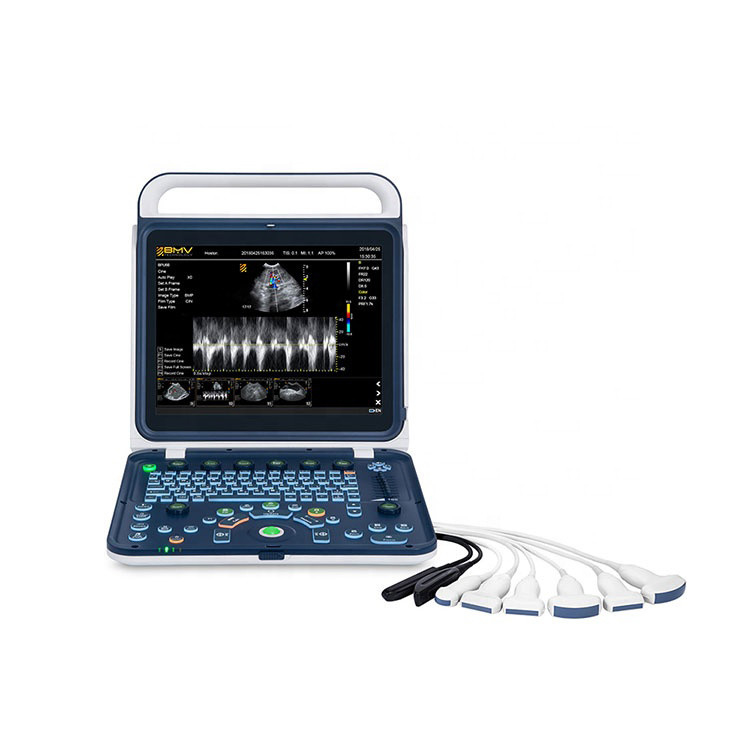

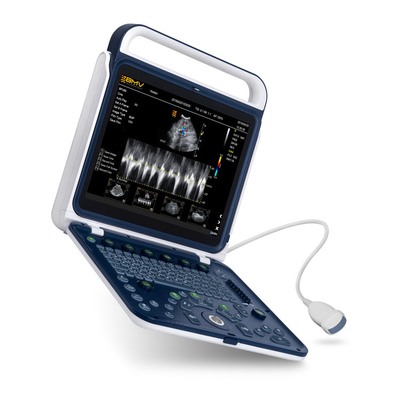

Product Picture



BPU60 Portable Veterinary Ultrasound Versatile Color Doppler Veterinary Ultrasound Equipment 0BPU60 Portable Veterinary Ultrasound Versatile Color Doppler Veterinary Ultrasound Equipment 1BPU60 Portable Veterinary Ultrasound Versatile Color Doppler Veterinary Ultrasound Equipment 2



FAQ



Q1: How long will it take to produce the product?

A: It will usually take 7-10 days for order less than 20,000 pcs; 14-21 days for 20,000 to 100,000 pcs; for order more than 100,000 pcs will take around 30-45 days depends on the customized requirements.



Q2: How should buyer pay to us?

A: We could accept T/T transfer, Credit Card, Debit Card, Western Union, Paypal and Money Gram. And we could accept 30% deposit before start to produce, and 70% balance before the product leave our factory for order more than 20,000 pcs, and we can accept factory and product inspection. We don't accept L/C payment method now.



Q3: What trade terms do we support?

A: Theoretically we can accept all the terms, but what we do most is FOB and CPT, for some country we could offer DDP, like the USA, UK, Australia, France and so on. If you want check whether your country on the list, please contact our customer service staff.



Q4: How long will it take to delivery the product?

A: That will depends on what shipping method you choose, usually sea shipping will take about 30-35 days to delivery to the port, but DDP sea shipping will take longer because they will need to delivery the product to your appointed address, usually it will take about 35-45 days, depends on the distance between the destination country and China. By air cargo will be much sooner, usually it will take 5-10 days to delivery to the appointed airport. Air Express will depends on the country delivery to, like European and North American countries, usually it will take 3-12 days. For Southern east countries, it will take about 2-9 days. For Africa and South American countries, it will take longer. Australia will need to see the local custom policy, usually it will take about 7-12 days.



Q5: What if I receive the product broken?

A: If you receive the product broken, please don't worry. We have three policy to protect your benefit.

1) If the damage rate is less than 5%, we will offer some discount in your next order as compensation.

2) If the damage rate is more than 5%, we could refund you equal value amount or give you the equal quantity product for free in you next order.

3) If you need the product urgently, we could resend the same quantity of the damaged product for free, and we share the shipping cost 50% each side with our customer.
